YZ20P5 Ophthalmic Operation Microscope with Coaxial Illumination 3-Step Magnification Foot Control for Cataract Surgery

Request For Quotation

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

OPHTHALMIC SURGICAL EQUIPMENT

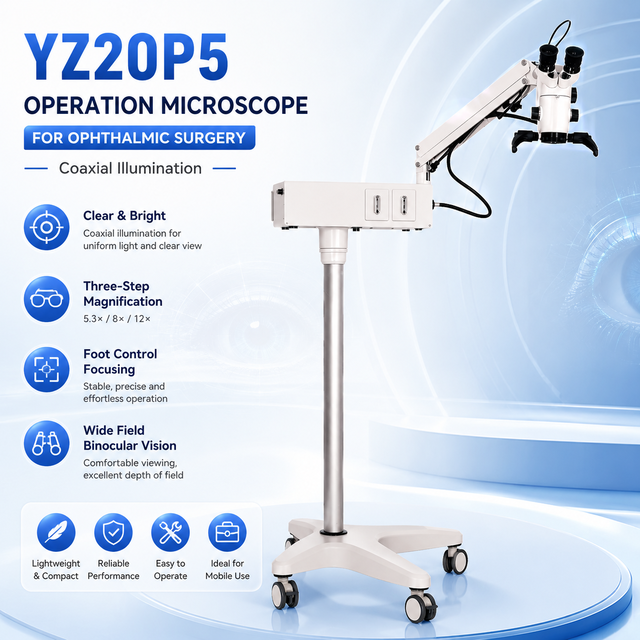

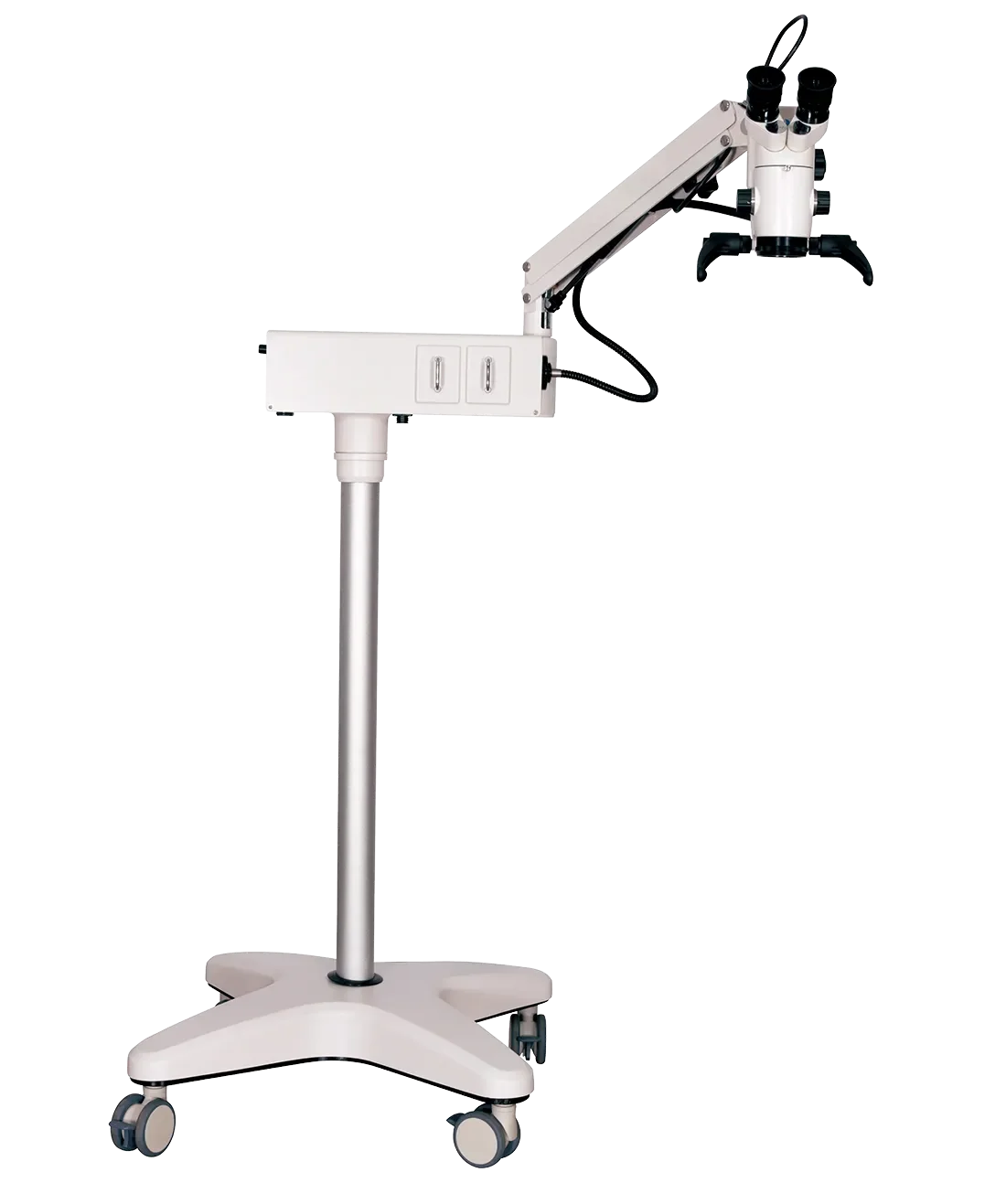

YZ20P5 Ophthalmic Operation Microscope

Coaxial Illumination Â· 3-Step Magnification Â· Foot Control

A compact ophthalmic operation microscope designed for professional surgical observation, featuring foot-controlled focusing, three-step magnification and apochromatic optical technology.

KEY PRODUCT ADVANTAGES

Foot Control Focusing

Foot control focusing provides convenient operation during ophthalmic procedures while keeping the surgeon's hands available for the procedure.

Three-Step Magnification

Three magnification levels of 5.3X, 8X and 12X provide different observation views for ophthalmic surgical applications.

Apochromatic Technology

Apochromatic optical technology helps bring different wavelengths of light closer to the focus position for a clearer surgical field of view.

Compact 41 kg Design

With a total machine weight of approximately 41 kg, the compact design is especially suitable for mobile medical applications.

PROFESSIONAL OPTICAL SYSTEM

Designed for ophthalmic surgical observation with multiple magnification levels, adjustable diopter and binocular viewing.

5.3X

Magnification

Î¦37 mm Vision Field

Magnification

Î¦25 mm Vision Field

12X

Magnification

Î¦16.7 mm Vision Field

DESIGNED FOR SURGICAL OPERATION

Wide Vertical Movement

Vertical movement range: 700 mm to 1100 mm, providing flexible positioning for different operating requirements.

Flexible Arm Positioning

Maximum arm stretching radius reaches 870 mm for flexible positioning around the operating area.

Adjustable Binocular Viewing

Pupil distance adjustment range: 55 mm to 75 mm. Diopter adjustment range: +5D to -5D.

Fine Focusing

Fine focus speed is up to 2 mm/s, with a fine focus distance of at least 30 mm.

PRODUCT SPECIFICATIONS

Specification	YZ20P5
Vertical Movement Range	700 mm - 1100 mm
Maximum Arm Stretching Radius	870 mm
Total Magnification	5.3X / 8X / 12X
Vision Field	5.3X: Î¦37 mm / 8X: Î¦25 mm / 12X: Î¦16.7 mm
Diopter Adjustment	+5D to -5D
Working Distance	190 mm
Objective	200 mm / 250 mm Optional / 400 mm Optional
Fine Focus Speed	â‰¤ 2 mm/s
Fine Focus Distance	â‰¥ 30 mm
Pupil Distance Adjustment	55 mm - 75 mm
Height of Eyecups	18 mm
Center Distance of Light	26 mm
Power Supply	AC 110V/220V Â±10%, 50Hz/60Hz
Machine Weight	Approximately 41 kg
Binocular Style	Binocular for Single Person

OBJECTIVE OPTIONS

200 mm

Standard Objective

250 mm

Optional Objective

400 mm

Optional Objective

OPHTHALMIC SURGERY APPLICATION

The YZ20P5 operation microscope is designed for ophthalmic surgical observation. Its three-step magnification system, binocular viewing, foot-controlled focusing and apochromatic optical technology support clear and flexible observation during ophthalmic procedures.

YZ20P5 OPERATION MICROSCOPE

Professional Ophthalmic Surgical Optical System

Please contact us for product configuration, quotation and technical information.
