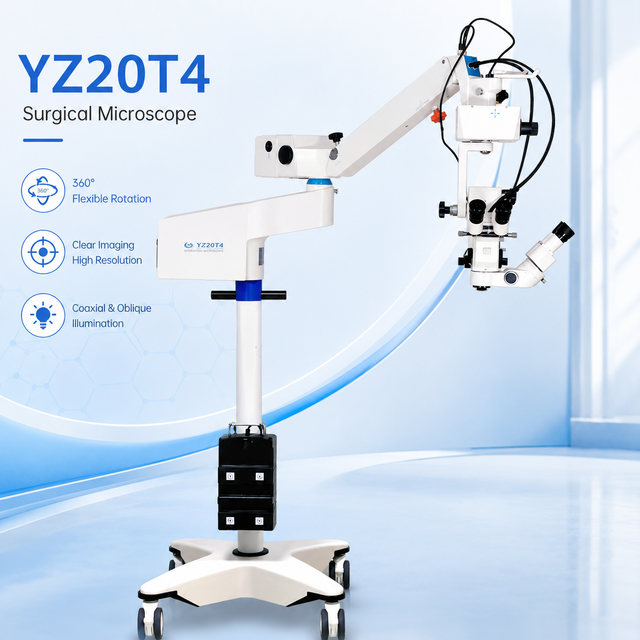

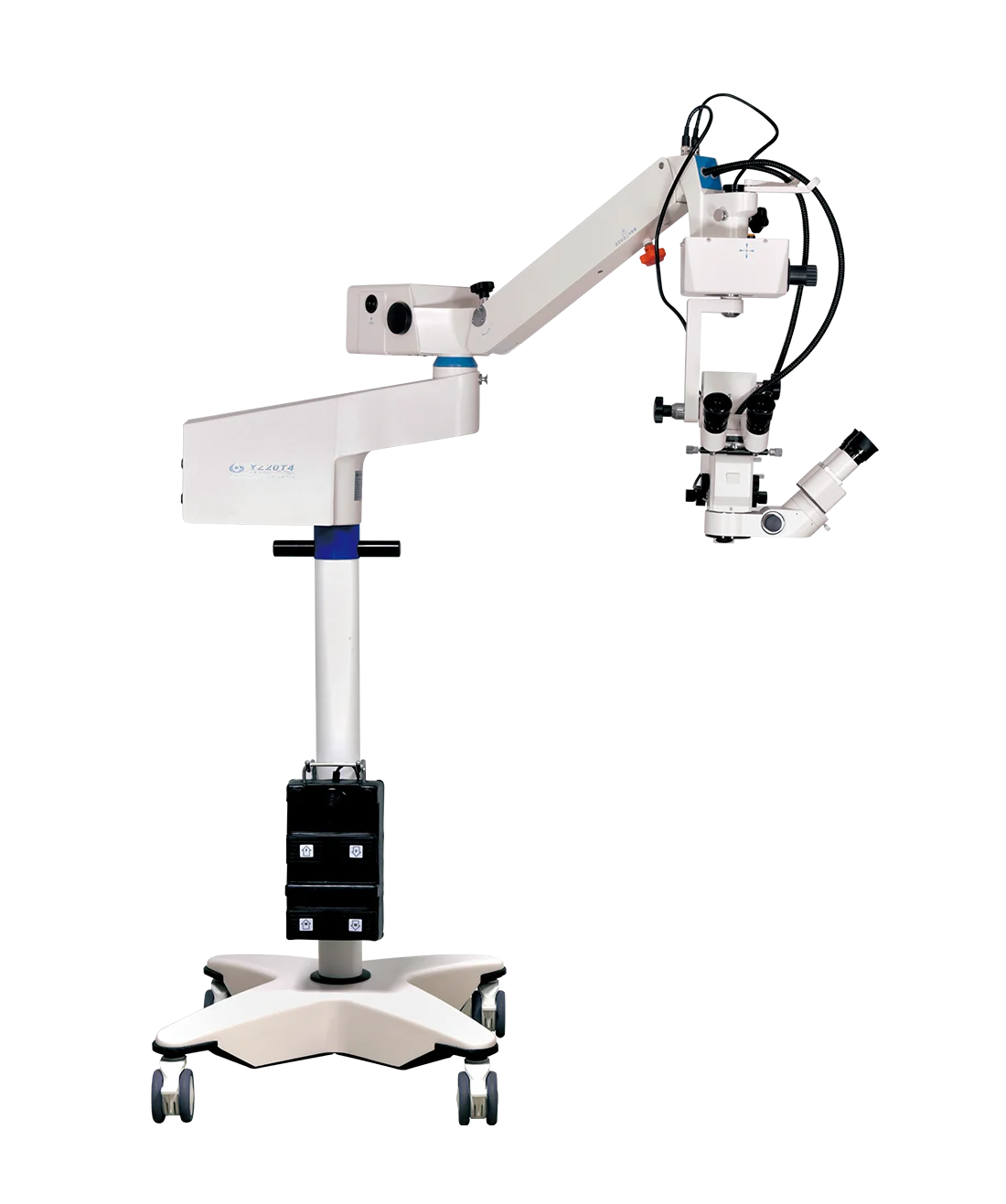

YZ20T4 SURGICAL OPERATING MICROSCOPE

Professional Medical Operation Microscope for Surgical Applications

Professional Surgical Observation

The YZ20T4 Operation Microscope is designed for professional medical surgical applications. The microscope combines a flexible optical system, adjustable magnification, cold light illumination and multiple positioning functions to provide clear and convenient observation during operation.

The assistant microscope can be rotated to the opposite microscope, providing additional flexibility for surgical observation and operation.

KEY FEATURES

4Xâ€“25X Magnification

Multiple magnification levels provide flexible observation for different surgical requirements.

Cold Light Illumination

Supports coaxial cold light illumination and oblique illumination for flexible observation.

Flexible Positioning

Vertical and X-Y adjustment functions allow convenient positioning according to operating requirements.

OPTICAL SYSTEM

Item	Specification
Primary Eyepiece Tube Angle	45Â°
Pupil Distance	55â€“75 mm
Adjustable Diopter	+5D to -5D
Eyepiece Magnification	12.5X
Total Magnification	4X, 6X, 10X, 16X, 25X
Working Distance	190 mm
Objective Lens	F200 mm
Optional Objective Lens	F300 mm

MULTIPLE MAGNIFICATION OPTIONS

The YZ20T4 provides five total magnification levels for flexible surgical observation.

10X

16X

25X

FLEXIBLE ILLUMINATION SYSTEM

The illumination system supports two observation modes:

6Â° + 0Â° cold light source coaxial illumination
25Â° oblique illumination
Oblique illumination can also be used as slit illumination
Slit width is adjustable
Medical cold reflection halogen lamp: 12V/100W

PRECISION ADJUSTMENT SYSTEM

Adjustment	Range / Speed
Vertical Adjustment	850â€“1350 mm
X-Y Movement	50 Ã— 50 mm
X-Y Speed	â‰¤2 mm/s
Fine Focus	50 mm
Fine Focus Speed	â‰¤2 mm/s

SURGICAL APPLICATIONS

The YZ20T4 is designed for professional surgical observation and can be applied in ophthalmic surgery, orthopedic surgery and other surgical applications.

Ophthalmic Surgery

Orthopedic Surgery

Surgical Applications

TECHNICAL SPECIFICATIONS

Parameter	Specification
Model	YZ20T4
Power Consumption	380 VA
Power Supply	AC110V/220V Â±10%, 50Hz/60Hz
Illumination Source	12V/100W Cold Reflection Halogen Lamp
Pupil Distance	55â€“75 mm
Diopter Adjustment	+5D to -5D
Working Distance	190 mm
Vertical Adjustment	850â€“1350 mm
X-Y Range	50 Ã— 50 mm
Optional Objective	F300 mm

YZ20T4 PROFESSIONAL SURGICAL OPERATING MICROSCOPE

Professional optical system Â· Multiple magnification Â· Flexible illumination Â· Precise adjustment
