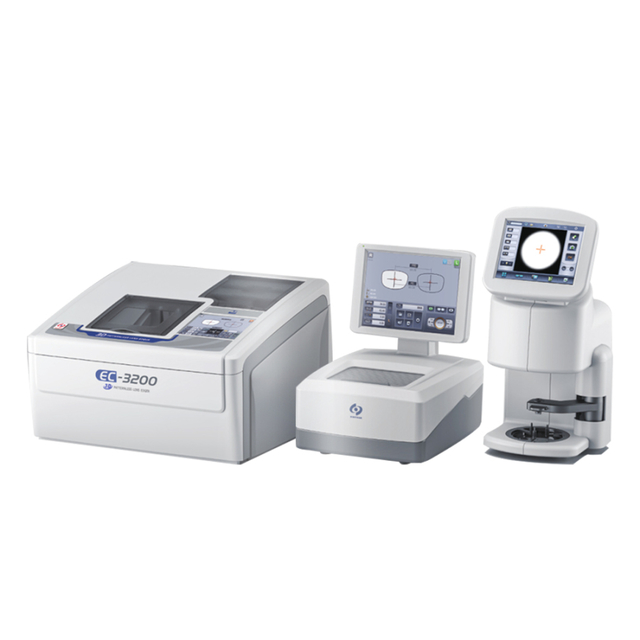

copy of Auto Lens Edger Plus Auto Lens Scanner Pattern Less Lens Edger EC-3200+CT-700+LT-800 Pattern Less Lens Edger Pattern Less Lens Edger_0 copy of Auto Lens Edger Plus Auto Lens Scanner Pattern Less Lens Edger EC-3200+CT-700+LT-800

Request For Quotation

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

Pattern Less Lens Edger Specificationsï¼š

EC-3200
Processing system	Beveling, flat edging, grooving, polishing and chamfering
	Auto mode and guide mode
	Processing lens	glass, plastic, polycarbonate
	Processing pressure	approx. 4.Skg (fixed)
Wheels	Roughing wheel for glass lens	100mm in diameter, 17mm in width
	Roughing wheel for plastic lens	100mm in diameter, 17mm in width
	Finishing wheel	100mm in diameter, 23mm in width
	Polishing wheel (for flat edge)	100mm in diameter, 12mm in width
water supply system	Pump circulation	AC 100~230V
Processing accuracy	Size accuracy	Â±0.05mm
Processing accuracy	Axis angle	Â±1.
Whole system	Display	5.6â€™â€™LCD/TFT
	Dirnensrons	520mmâ€¢485mmâ€¢330mm
	Weight	-45Kg(only main body)
	Power supply	110/220V 50/60HZ
	Power consumption	1.2KVA(max. during processing)

CT-700
Whole system	Measurement time	<3S
	Measurement accuracy	<0.1mm
	Display	8â€³LCD/TFT(800â€¢600)
	Dimensions	415mm260mm236mm
	Weight	~9Kg(only main body)
	Power supply	110/220V 50/60Hz
	Power consumption	25W

LT-800
Whole system	Measurement time	<20S
	Measurement accuracy	<0.1mm
	Display	10.4â€³LCD/TFT(800â€¢600)
	Dimensions	363mm308mm405mm
	Weight	~11Kg(only main body)
	Power supply	110/220V 50/60Hz
	Power consumption	150VA

Tags:
Pattern Less Lens Edger, Auto Lens Edger, Auto Lens Edger With Tracer, patternless Auto Lens Edger

China Pattern Less Lens Edger

Good quality Pattern Less Lens Edger

Pattern Less Lens Edger EC-3200+CT-700+LT-800

Pattern Less Lens Edger Features

1. Flexible and versatile
2. User-friendly color LCD panel
3. Integrated tracing and centering device
4. The display can be tilted
5. The shape imager detects the shape of a pattern, demo lens and horizontal axis automatically
6. The pattern could be stored to improve efficiency. Frame memory could save time and storage space.
7. 3D lens inspection system
8. Grooving and safety beveling
9. Processing mode for various kinds of lens materials

Ask a Question

No data

Average rating:

Share your thoughts with other customers

Write a review

Processing time

According your order list. we will supply delivery time .

Commonly is 5-7 work days after we confirm payment

Shipping time

By Express : 3-7 days . Door to door service

By Air : 3-7 days . (the goods arrival at your local air ports

By sea : 30-40 days (the goods arrival at your local sea ports )

PS : by air or by sea, if you need door to door service, please tell us . we will help you checking the extra door to door cost.

How many months warranty do you provide ?
one year

What should I do if the machine have question ?
For ensuring all the items are in good quality, we will test all products before the packages were sent out. Once the machine have some question, please don't worry. kindly send us some images of the situation , Video and machine series, and explain the question in where . we will supply solution to you deal soon.

What should I do if the spare parts is broken in Warranty ?
If in Warranty, some spare parts broken in the Use. kindly supply picture or video , and machine series number .

We will send the spare parts by express to you soon.. and we bear express cost .
