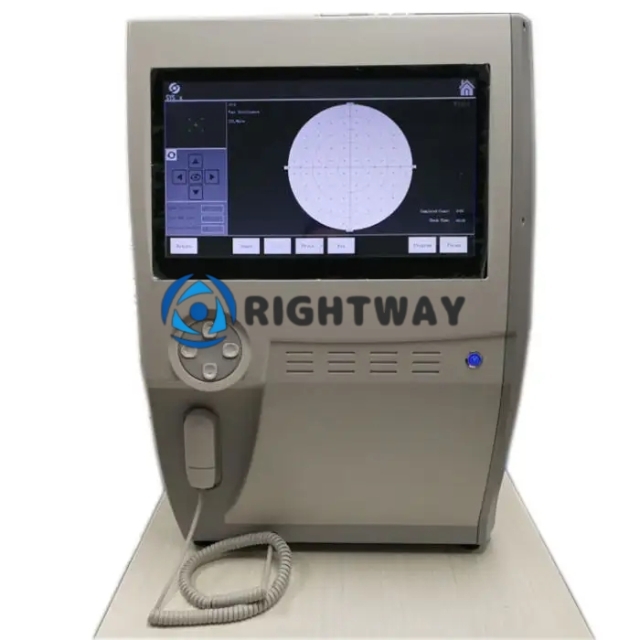

Optical BIO-1100 Ophthalmology Automatic Field of View Analyzer Computer Perimeter

Request For Quotation

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

Product Description

Features:
* Rigorous implementation of Goldman international standard.
* Halogen projection system:Stimulation light source is from wide band visible spectrum, fully meet colored cone cell stimulation.
* Accurate and elaborate database of normal population of all age groups, recognition of more subtle early visual field defects.
* GHT glaucoma semi vision analysis, make glaucoma diagnosis easier.
* GPA glaucoma progression analysis upgrade, slight glaucoma development is obvious.
* Standard SWAP blue-yellow visual field examination, sensitive to earlier visual field defects

* Scientific and intelligent interactive inspection strategy, 30Â° range visual field inspection only takes 3 minutes.
* Simple one-stop modular software design, equipment operation learning only 2 minutes
* Zeiss humphrey 860 same function.

Specifications:

Testing scope		90Â°
Testing distance		30CM
Background light		white31.5asb,yellow315asb
Visual target		0.08asb---10000asb(0-51DB)
Target size		Goldmannâ… , II ,III,IV,V
Visual target stimulation time		200ms
Visual target interval time		Standard and custom
Threshold policy		Macula,10-2,24-2,30-2,60-4,nasal side
Upper threshold policy		C-40,C-64,C-76,FF-81,FF-120,FF-135â€¦â€¦
Special detection strategy		Esterman monocular,Esterman binocular,upper36Â°screening,blind point testing
Yellow-blue testing		Standard 440nm blue visual target + 315asb OG530yellow background brightness
Visual target		Red ,blue
Dynamic policy		Standard dynamic,blind dynamic,dark spot dynamic ,straight line dynamic
Custom policy		Static custom dynamic custom
Pupil size measurement		Auto
Fixation monitoring		Physiological blind spot monitoring,eye position monitoring,eye position moving alarm,eye tracking curve
Environment light testing		Auto
Analysis software		reliability analysis , single report, triple report, GHT glaucoma semi vision report, GPA glaucoma developing analysis, VFI analysis, Blue-yellow analysis
System		Win7 above
Others
Size	412mm(length)* 497mm(width)* 513mm(height)
Wight	17kg
Power	100-240V HZ:50-60Hz
