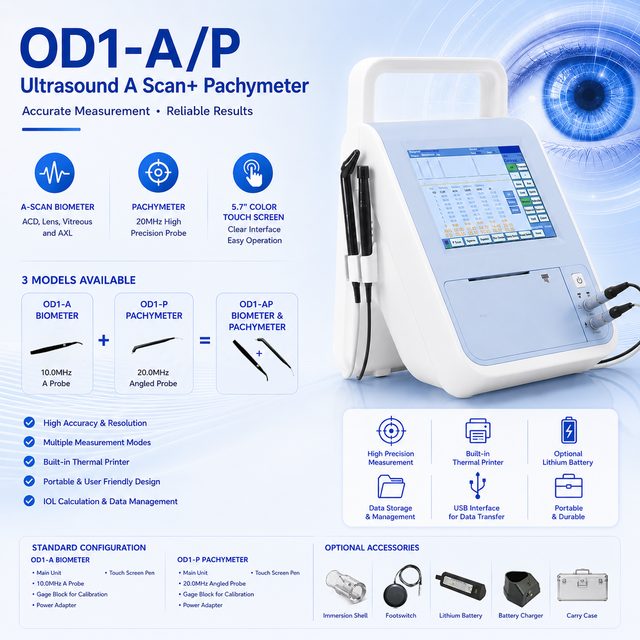

OD1-AP Ultrasound AScan Biometer Pachymeter Ophthalmic Diagnostic Device with 10MHz AProbe and 20MHz Pachymetry Probe

Request For Quotation

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

OPHTHALMIC ULTRASOUND DIAGNOSTIC SYSTEM

OD1-A/P BIO & PACHY METER

Ultrasound A-Scan Biometer + Pachymeter

A portable ophthalmic diagnostic platform designed for biometric measurement and corneal pachymetry, featuring a color touch screen, built-in thermal printer and optional battery operation.

PROFESSIONAL OPHTHALMIC MEASUREMENT

OD1-A/P integrates ultrasound biometry and pachymetry functions into one compact ophthalmic diagnostic device. The system provides A-scan measurements for ACD, Lens, Vitreous and Axial Length, together with corneal thickness measurement using a dedicated 20MHz angled probe.

KEY FEATURES

01. Dual Measurement Functions

Combines ultrasound biometry and corneal pachymetry in one ophthalmic diagnostic platform.

02. Portable Design

Compact triangular design with integrated carrying handle and approximately 1.7 kg weight for convenient clinical use.

03. 5.7-inch Color Touch Screen

Color LED touch screen provides convenient operation and clear presentation of measurement data.

04. Built-in Thermal Printer

Integrated thermal printer allows measurement information to be printed conveniently after examination.

05. Optional Battery Operation

Internal optional lithium battery supports flexible use, including out-clinic diagnostic applications.

06. Data Management

Standard workstation software supports data transfer and management, with software upgrade available through USB interface.

OD1-A BIOMETER

The 10MHz A-scan biometer is designed for ultrasonic biometric measurement of ocular structures. Measurement modes include contact and immersion methods, with automatic and manual operation.

Parameter	Specification
Probe Frequency	10 MHz
Resolution	0.01 mm
Accuracy	Â±0.02 mm
Gain Adjustable	0â€“120 dB
Measurement Range	15â€“35 mm at 1640 m/s
Measurements	ACD, Lens, Vitreous and AXL
Examination Modes	Normal, Aphakic, Pseudophakic and Dense Cataract
Measurement Mode	Immersion and Contact; Auto and Manual
IOL Formulas	SRK-II, SRK-T, Binkhorst, Holladay, Hoffer-Q, Haigis

OD1-P PACHYMETER

The 20MHz angled probe is designed for ultrasonic corneal thickness measurement, providing high-resolution pachymetry data for ophthalmic examination.

Parameter	Specification
Probe Frequency	20 MHz
Resolution	1 Î¼m
Measurement Range	0.23â€“1.3 mm
Accuracy	Â±5 Î¼m

USER-FRIENDLY PORTABLE DESIGN

5.7" Touch Screen

Color LED touch screen for convenient operation.

Approx. 1.7 kg

Compact and portable design for flexible clinical use.

Thermal Printer

Convenient hard-copy output of examination information.

STANDARD CONFIGURATION

Model	Configuration
OD1-A	Main Unit, 10.0MHz A Probe, Gage Block for A-Scan/Biometer, Power Adapter, Touch Screen Pen
OD1-P	Main Unit, 20.0MHz Angled Probe, Gage Block for Pachymeter, Power Adapter, Touch Screen Pen
OD1-AP	Biometer + Pachymeter configuration

OPTIONAL ACCESSORIES

Optional accessories are available according to configuration requirements.

Lithium Battery Battery Charger Footswitch Gage Block Touch Screen Pen

GENERAL SPECIFICATIONS

Power Requirement	AC 100â€“240V, 50â€“60Hz; Rated Power â‰¤45 VA
Dimension	200 Ã— 168 Ã— 165 mm
Display	5.7-inch Color LED Touch Screen
Printer	Built-in Thermal Printer
Weight	Approximately 1.7 kg

APPLICATION

Suitable for ophthalmic diagnostic environments requiring ultrasound biometry, axial length measurement and corneal pachymetry in a compact and portable system.
