DR-1900 Ophthalmic Diagnostic Set Coaxial Ophthalmoscope Streak Retinoscope 2-in-1 Eye Examination Diagnostic Instrument

Request For Quotation

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

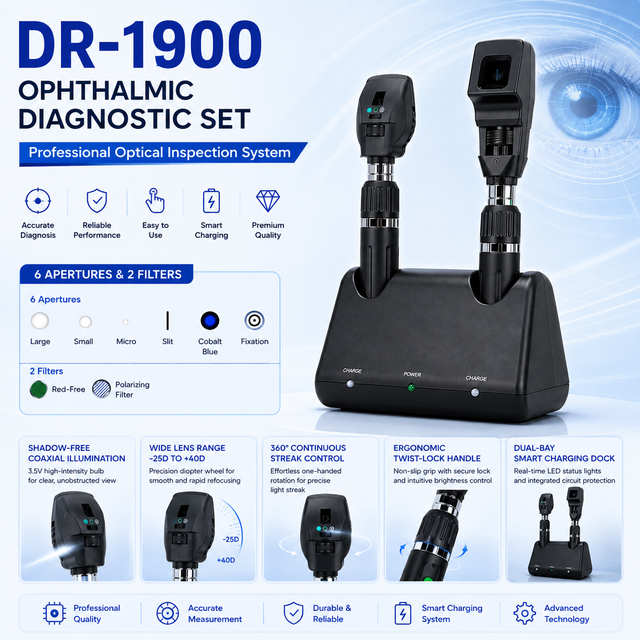

DR-1900

OPHTHALMIC DIAGNOSTIC SET

Professional 2-in-1 Ophthalmic Examination System

A professional ophthalmic diagnostic set integrating coaxial ophthalmoscope and streak retinoscope functions for efficient eye examination and optical inspection.

PRODUCT OVERVIEW

2-in-1 Diagnostic System

DR-1900 combines a coaxial ophthalmoscope and streak retinoscope in one professional ophthalmic diagnostic set.

Dual-Head Design

Two specialized diagnostic heads are integrated into a compact dual-bay charging dock for convenient clinical operation.

Professional Illumination

Multiple aperture and filter selections support different ophthalmic observation and examination requirements.

COAXIAL OPHTHALMOSCOPE

Shadow-free coaxial illumination provides an aligned observation path for clear and unobstructed viewing.

6 Aperture Selection

Large, Small, Micro, Slit, Cobalt Blue and Fixation apertures provide flexible examination options.

Dual Filter System

Red-Free Filter and Polarizing Filter support different ophthalmic observation requirements.

High-Output Illumination

3.5V / 2.7W high-intensity bulb provides the illumination required for routine ophthalmic inspection.

STREAK RETINOSCOPE

Wide Diopter Range

Diopter range from -25D to +40D supports smooth and flexible focusing adjustment.

360Â° Streak Rotation

Continuous 360Â° streak rotation enables convenient control of the projected streak orientation.

Adjustable Streak

Streak dimensions are adjustable according to the diagnostic examination requirements.

ERGONOMIC TWIST-LOCK HANDLE

The lightweight handle combines twist-lock connection, non-slip grip and brightness adjustment for convenient handheld operation.

Twist-Lock

Tight locking connection helps maintain a stable connection.

Non-Slip Grip

Textured handle design provides a secure handheld grip.

Dimming Switch

Convenient brightness adjustment during examination.

DUAL-BAY SMART CHARGING DOCK

The dual-bay charging dock supports simultaneous charging of the two diagnostic heads with LED charging status indicators.

Dual Charging Ports

Two charging bays allow simultaneous charging of both diagnostic heads.

LED Status Indicators

LED indicators provide convenient charging and power status information.

Safety Protection

Built-in overcharge protection is designed for safer charging operation.

TECHNICAL SPECIFICATIONS

Category	Specification
Coaxial Ophthalmoscope	Diagnostic head with coaxial illumination
Diopter Range	-25D to +40D
Aperture Selection	Large, Small, Micro, Slit, Cobalt Blue, Fixation
Filter Options	Red-Free Filter, Polarizing Filter
Illumination Source	3.5V / 2.7W High-Intensity Bulb
Streak Retinoscope	Streak Retinoscope
Streak Rotation	360Â° Continuous Rotation
Streak Dimensions	Length â‰¥30 mm, Width â‰¤1.5 mm
Image Distance	Real & Virtual Image Distance â‰¤450 mm
Dustproof Sealing	100% Sealed Housing with Front Glass Cover
Battery	3.7V / 2777mAh Lithium-Ion Battery
Charging Time	Approximately 3 Hours Full Charge
Operating Time	Approximately 3 Hours
Charger Input	AC 100-240V

PROFESSIONAL OPHTHALMIC APPLICATION

DR-1900 is designed as a compact ophthalmic diagnostic set combining two essential handheld examination instruments in one charging system. The integrated design provides convenient access to different optical examination functions in ophthalmic practice.

DR-1900

Ophthalmic Diagnostic Set

Professional Ophthalmic Diagnostic Equipment
