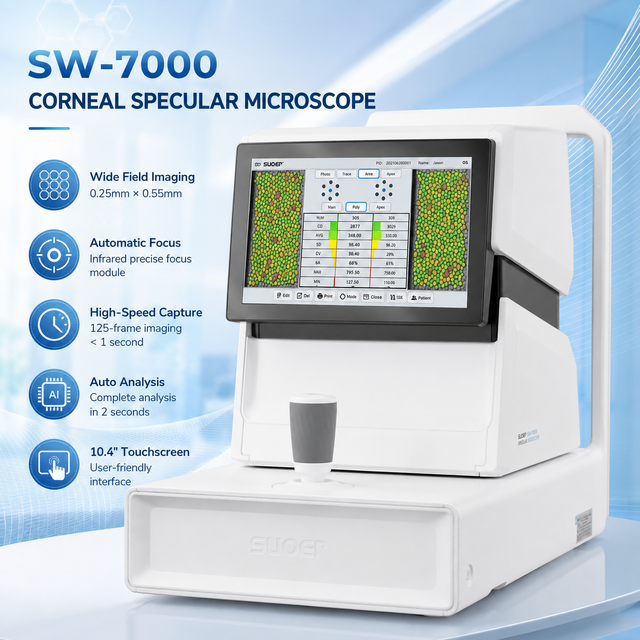

SW-7000 Corneal Specular Microscope Automatic Non-Contact Endothelial Cell Analyzer with Corneal Thickness Measurement

Request For Quotation

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

SW-7000

CORNEAL SPECULAR MICROSCOPE

Automatic Non-Contact Corneal Endothelial Cell Analysis System

KEY FEATURES

FULLY AUTOMATIC

Automatic pupil detection, alignment, shooting and image analysis.

FAST ANALYSIS

Automatic image analysis can be completed within approximately 2 seconds.

13 MEASURING POINTS

Center, 6 paraxial and 6 peripheral measuring points.

NON-CONTACT

Non-contact endothelial cell image acquisition for ophthalmic examination.

HIGH-SPEED IMAGING SYSTEM

Precise Focusing and High-Speed Imaging

The SW-7000 uses a high-precision infrared focusing module to align the focal plane with the inner surface of the cornea.

The 125-frame high-speed imaging system can continuously capture multiple images and automatically select suitable images for analysis.

Flash time is reduced to less than 1 second, helping improve examination comfort.

WIDE FIELD OF VIEW & MULTIPLE MEASURING POINTS

0.25mm Ã— 0.55mm wide-field endothelial cell imaging with up to 13 measuring points.

Center Point

Paraxial Points

Peripheral Points

RAPID AUTOMATIC ANALYSIS

After image acquisition, the system automatically performs image analysis and provides measurement parameters.

Main Analysis Parameters

NUM â€” Number of Cells
CD â€” Cell Density
AVG â€” Average Area
SD â€” Standard Deviation of Area
CV â€” Coefficient of Variation
MAX â€” Maximum Area
MIN â€” Minimum Area
6A â€” Percentage of Hexagonal Cells

10.4-INCH HIGH-RESOLUTION TOUCHSCREEN

The 10.4-inch colored LCD touchscreen provides a clear and convenient operating interface.

Traditional joystick operation is retained to accommodate different operator preferences.

Display: 10.4-inch colored touchscreen, 1080P

CENTRAL CORNEAL THICKNESS MEASUREMENT

Central corneal thickness can be measured simultaneously during image acquisition when the center measuring point is selected.

400â€“750 Î¼m

Measurement Range

Â±10 Î¼m

Accuracy below 600 Î¼m

Â±25 Î¼m

Accuracy above 600 Î¼m

DATA MANAGEMENT & CONNECTIVITY

UP TO 1TB

Storage Capacity

DICOM 3.0

Data Transmission

USB Ã— 2

USB Data Output

LAN Ã— 1

Network Connection

MANUAL ANALYSIS FUNCTION

The analysis area can be independently selected. The system can recalculate the main parameters according to the selected area, providing additional flexibility during image analysis.

PRODUCT SPECIFICATIONS

Parameter	Specification
Capturing Method	Non-contact
Capturing Range	0.25mm Ã— 0.55mm
Capturing Area	Center and 12 peripheral fixation points
Working Mode	Full-auto / Semi-auto
Cornea Thickness Range	400 Î¼m â€“ 750 Î¼m
Display	10.4-inch Color Touchscreen, 1080P
Data Output	USB Ã— 2, LAN Ã— 1, DICOM 3.0
Storage	Up to 1TB
Dimensions	315 Ã— 535 Ã— 465mm
Weight	Approx. 23kg
Power Source	100V AC â€“ 240V AC, 50/60Hz, 100VA

PROFESSIONAL OPHTHALMIC EQUIPMENT

SW-7000 is designed as an automatic non-contact corneal specular microscopy system for corneal endothelial cell imaging, analysis, measurement and clinical data management.
