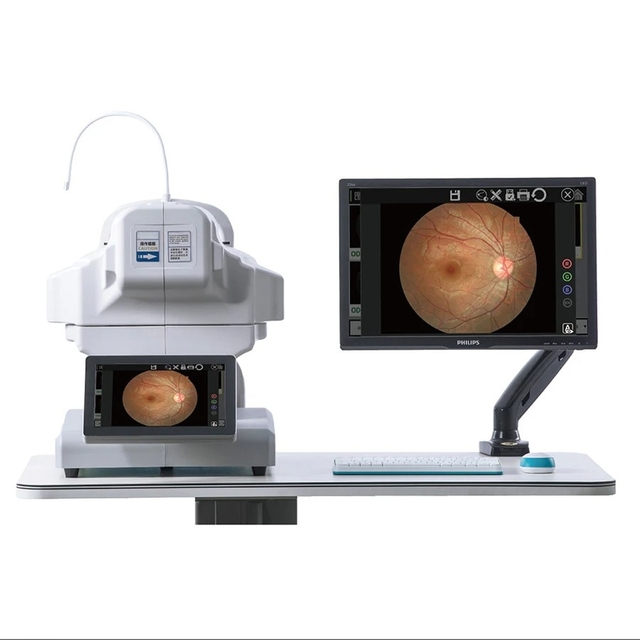

The Reticam 3100 is a fully automatic, non-mydriatic fundus camera designed for efficient retinal imaging in clinical environments. With a built-in computer, high-resolution imaging system, and intelligent automation, it enables fast and accurate fundus photography with minimal operator effort.

Its one-touch operation and dual-camera autofocus system make it ideal for ophthalmology clinics, hospitals, and screening programs, improving workflow and patient experience.

Key Features

• One-touch automatic operation for fast image acquisition

• Built-in computer with integrated design for compact setup

• 24 MP high-resolution imaging with 10.1″ TFT touch screen

• Non-mydriatic imaging (minimum pupil size: 3.3 mm)

• Dual-camera system for fast pupil detection and autofocus

• Auto exposure and fast focusing for consistent image quality

• Soft illumination technology for patient comfort

• Mosaic function up to 135° wide-field imaging

• Supports FFA (optional) and FAF (optional) imaging modes

  Dual-camera system-eyes of the device

  Dual-camera system is like eyes of the device.It searches and locates the pupil for fast andaccurate autofocus.




  135°wide field 9 position mosaic device

  Mosaic Function can generate the fundus images up to 135° field of view form 9 images of 50° field width each .More fixation points are distributed between 9 internal fixations shown.




  Smart Workflow

  1. Enter patient information

  2. Select eye (OD/OS) and align pupil

  3. Click “Capture”

  → High-quality fundus image generated within seconds

  ---

  Imaging Performance

  • Resolution: 24 megapixels

  • Display: 10.1-inch TFT touch screen (rotary)

  • Field of View: 50° (single), up to 135° (mosaic)

  • Minimum Pupil Size: 3.3 mm

  • Imaging Modes:

    • Color fundus photography

    • Fluorescein angiography (FFA, optional)

    • Fundus autofluorescence (FAF, optional)

  ---

  Advanced Technology

  • Dual-camera system: Accurate pupil tracking and autofocus

  • Soft lighting system: Reduces pupil constriction, supports continuous imaging

  • Step motor design: Low noise operation for a comfortable clinical environment.
