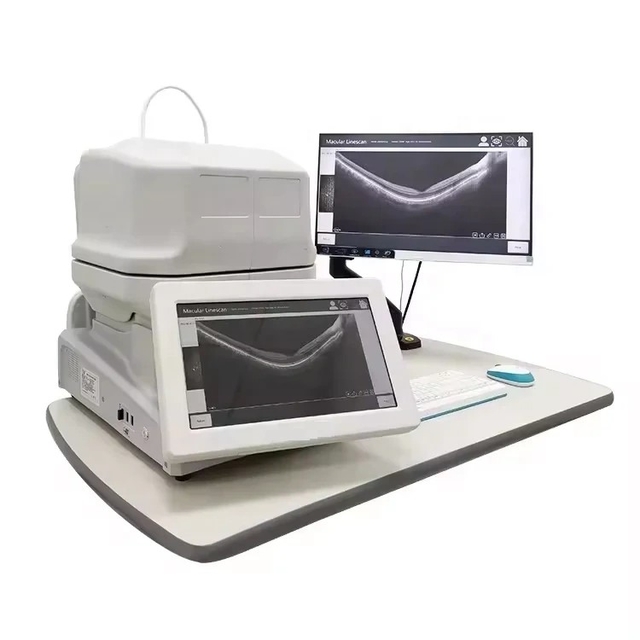

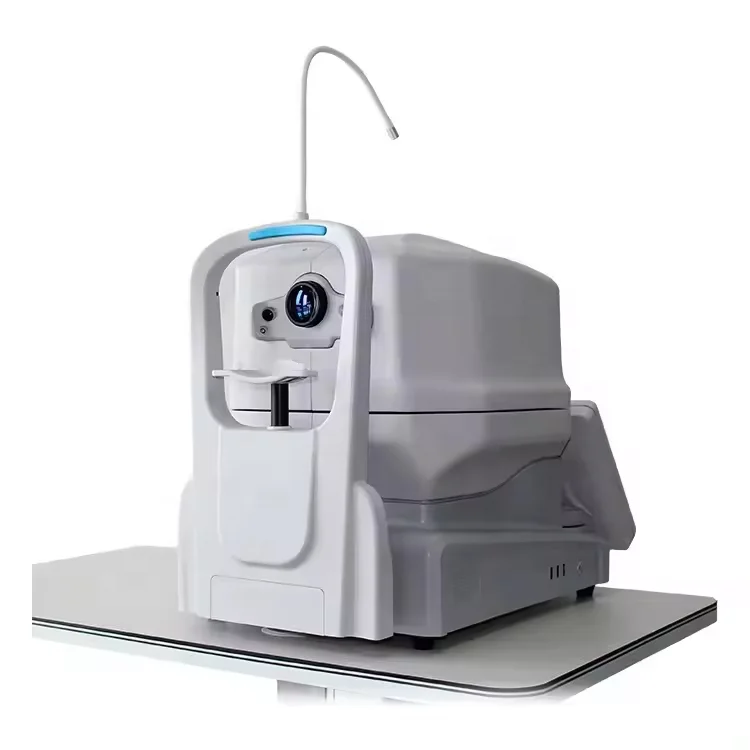

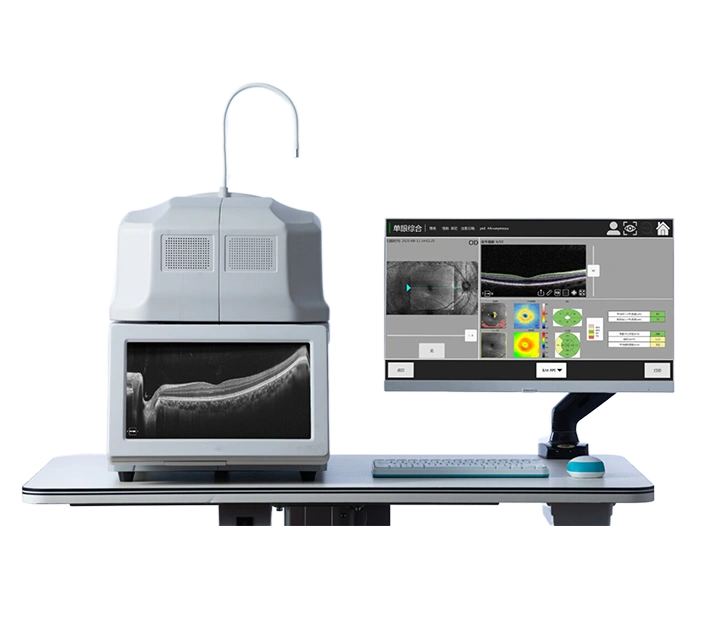

OCT-500 China Top Quality Ophthalmic Posterior Segment OCT Optical Coherence Tomography with built-in computer
Product Name
Posterior Segment OCT Optical Coherence Tomography
Model No.
OCT-500
Minimum Pupil Size
≥3.0mm
Scan Range
6-12mm
Main Features:
OCT-500 can perform tomographic imaging on the macular area, optic disc, choroid and other tissues of the fundus, providing important diagnostic basis and treatment for eye diseases, especially fundus diseases, glaucoma screening, diagnosis, follow-up and efficacy evaluation, a high-resolution, non-contact, non-invasive imaging technique for easy and fast examination.
Specification:
Note:Specifications and design are subject to change without notice.
Methodology
Spectral domain OCT
Axial Resolution
≦6um(in tissue)
Transverse Resolution
≦20(in tissue)
Minimum Pupil size
≥3.0mm
Scan Depth
≥2.5mm(in air)
Scan Range
6-12mm
Scan Speed
≥24,000A-scan/sec,up to 36,000A-scan/sec
Scan Mode
3D(Macular&Optic Disk) ,HD,Raster,Circle,Cross
Analysis Mode
Up to 7 retinal layers segmentation,Macular analysis mode,RNFL&Optic Disk analysis mode,Glaucoma analysis mode and Progress analysis for follow-up examination.
Fundus Image
OCT en face
Focus Adjustment
-15D to+15D
OCT Light Source
840nm SLD
Operation
13.3inch touchscreen,optional external mouse or keyboard
