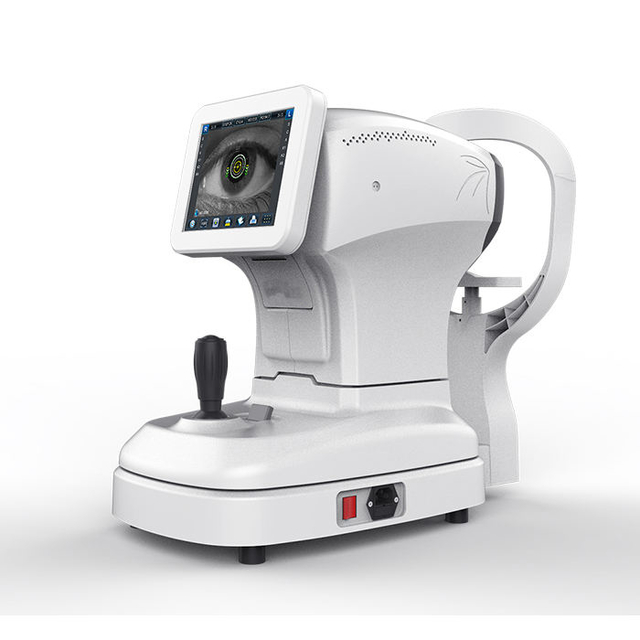

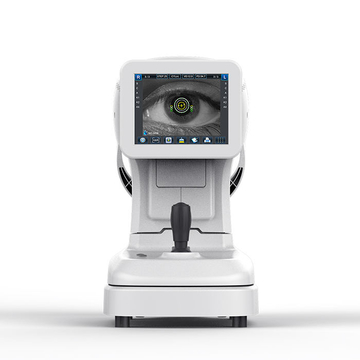

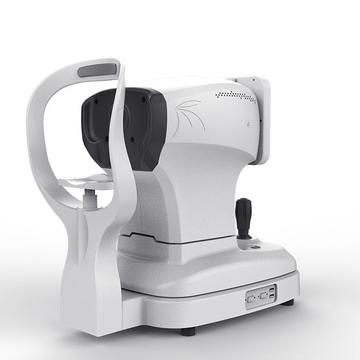

The Auto Refracto-Keratometer is one high precision instrument of objective measuring the patient’s eyes with unique optical system inside and accurate imaging analyzing and processing in Hartman technology. It’s mainly used to measure the patient’s diopter, including sphere power, cylinder power, optical axis, pupil distance and corneal curvature, to provide reference datas for eyes’ treating and eyeglasses choice. The measurement result can be displayed on screen or printed out on paper, and can also be transferred to auto phoroptor (fit to RS232 interface)). If the auto phoroptor can output data, this Auto Refracto-Keratometer can directly print out the measured optometry data by auto photoptor
Range of measurement
Sphere -20~+20D(VD=12) 0.12D/25D step
Cylinder -10~+10D 0.12D/25D step
Axis 0°~180° (1°step) PD 10-85mm,1mm step
VD 0mm,12mm,13.75mm
Min Pupil Size 2.0mm
Keratometry
Corneal apex distance 0.0, 12.0, 13.75, 15.0
Spherical mirror degree -20.00D ~ + 20.00D (VD = 12mm, 0.01,
0.06, 0.12, 0.25 units)
Axis position 10 ~ 180 ° (1 ° unit)
Cornea diopter 33.00D ~ 67.0D (when the corneal equivalent
diopter is 1.3375)
Cornea curvature radius 5.0 ~ 10.0mm (0.01mm accuracy)
Measure light energy <30uw (ensure measurement safety)
Others
Stored data 10 measurements each
Display 8-inch TFT touch screen (adjustable viewing angle)
Print 57mm thermal printer
Power supply AC 100 ~ 250V, 50 / 60Hz, wide power supply
Dimension 680mm x (width) 400mm x (height) 640mm
Gross weight ~26KG
Auto refractometer with keratometer
◆ New light path design
◆ Perfect imaging effect
◆ Smooth image analysis
◆ Proven processing technology
◆ Accurate measurement results
◆ Electric lifting forehead
◆ Automatic paper cutting thermal printer
◆ Powerful and easy to operate
◆ Leading technology in the world
◆ Main technical data
◆ Hartman imaging analysis and process technology, accurate measurement result
◆ New optical design, clear human eye image effect
◆ High speed image acquision system, advanced image deal and analysis
◆ Auto Focus and auto measurement
◆ The Screen can be Free rotation up, down, left and right
◆ Automatic up and down function for the chin rest
◆ High speed printer, can cut printing paper automatically
